General Information:

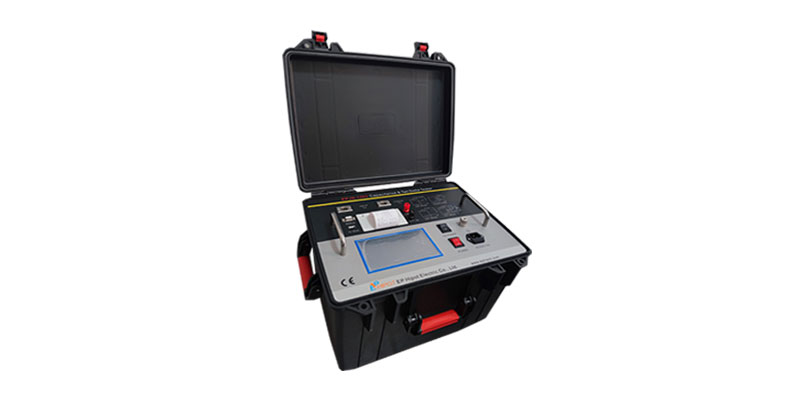

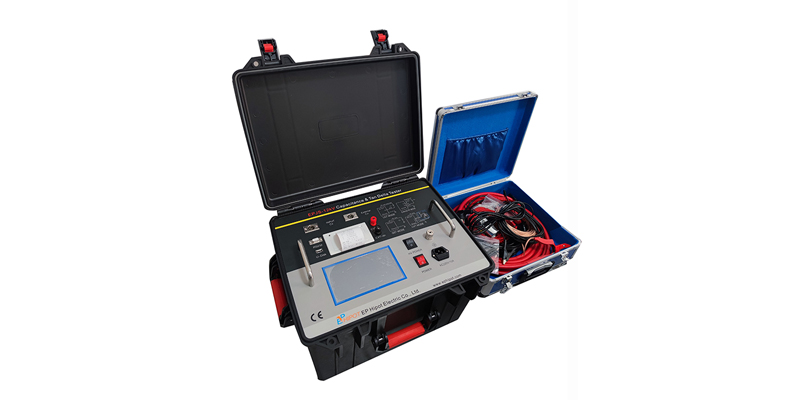

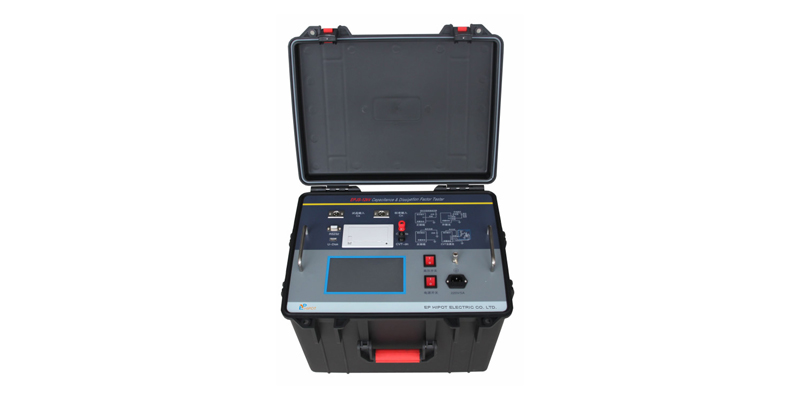

EPJS-12kV is a new generation, fully automatic on-site measure dielectric loss(tgδ)and the capacitance (Cx) of electric equipment. It’s suitable for testing on transformer, insulating bush, capacitor, CT/PT, MOA etc.

Features:
  • ♦ Build-in dielectric loss bridge, frequency conversion power supply, testing transformer, standard capacitor etc.
  • ♦ Frequency conversion anti interference, measuring accurately even under 200% interference, test data is stable and suitable for onsite interference dielectric loss measurement.
  • ♦ ♦ High precision, adopts digital waveform analysis and bridge self-calibration technology.
  • ♦ The input resistance of whole measurement range is lower than 2Ω, to eliminate auxiliary capacitance influence of measured cable.
  • ♦ Multi-level safety protection.
  • ♦ HV protection: Fast cut down when test object under short circuit, break down or HV current fluctuation.
  • ♦ LV protection: Auto starts protection to avoid over voltage when miss connected 380V, power fluctuation or power failure.
  • ♦ Grounding protection: When the tester is not to the ground or poor ground, the procedure will not be going on, no HV output. Over current protection, to protect device against damage when test object is at short circuit or breakdown.
  • ♦ CVT: HV voltage/current, LV voltage/current 4 protection limited value, to protect the equipment. The exciting voltage will not be outputted if miss operating. No 10kV HV output under CVT measuring.
  • ♦ Anti-miss operation: two degrees power switch. Voltage and current are real-time monitoring. Repeating press button to confirm. Connection terminals are divided as HV and Lv. Voltage boosting smoothly, and decreasing fast. With sound light alarm.
  • ♦ Anti “Capacity lifting”: When to test large capacity test object, the voltage will be enlarged. The tester can trace the output voltage automatically, to ensure the constant of test voltage.
  • ♦ Robust and anti-shake during long transportation.
  • ♦ HV cable: Insulated hipot cable.
  • ♦ Multi working modes can realize all kinds of dielectric loss testing: Positive/ Negative connection, internal/external standard capacitance, internal/external HV. No need to connect any outside auxiliary equipment.

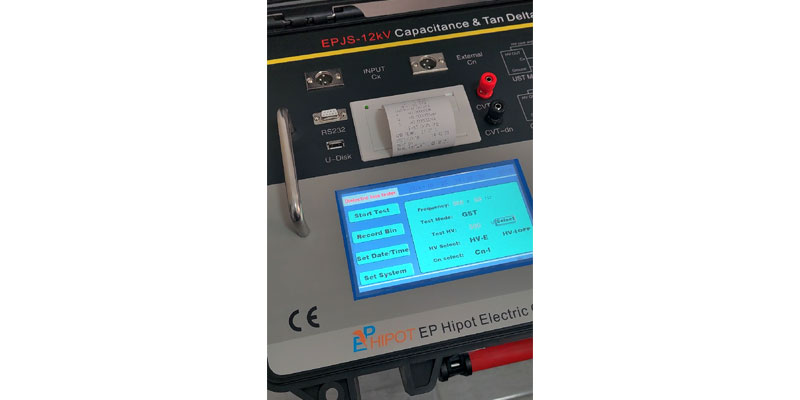

  • ♦ Large LCD screen with backlight, English menu easy to operate. Auto identifies the types (capacitance, inductance or resistance type) of test object.
  • ♦ Build-in printer.
  • ♦ Standard capacitor port: To be equipped with oil cup and special test leads, EPJS-12kV can realize the insulated oil dielectric loss measurement. The insulated material dielectric loss measurement also can be realized if outside connected with measuring polarity. To realize HV dielectric loss testing if outside connected with reference capacitor.
  • ♦ Auto identify 50Hz/60Hz system power source, and support electric generator. Normal measuring even the frequency has high fluctuation.
  • ♦ Build-in series and paralleled connections two dielectric measuring modes.
  • ♦ 255 groups’ data storage.
  • ♦ CVT test function, can realize CVT self-excitation test. Only one test, the capacitance and dielectric loss of C1, C2 can be measured all.
  • ♦ Negative connection LV shield function: when 220kV CVT bus bar to the ground, C11 can do the 10kV negative connected dielectric measurement without removing the wires.
  • ♦ Auto identify outside connected HV test power source frequency 40Hz~70Hz, support power frequency source, variable frequency source and series resonant power source to proceed large capacity HV dielectric loss test.
  • ♦ RS232 PC port, to realize measuring, data processing and test report exporting, including software updating. And can be compacted into HV test vehicle.
  • ♦ To be equipped with oil vessel to realize insulation oil dielectric dissipation measuring.


Specifications:

Accuracy: Cx: ±(read ×1%+1pF)
tgδ: ±(read ×1%+0.00040)
Anti interference: Frequency conversion anti interference, under 200% interference, still can reach above accuracy.
Capacitance range: Internal HV: 3pF~50000pF/12kV 60pF~1μF/0.5kV
External HV: 3pF~1.5μF/12kV 60pF~30μF/0.5kV
Resolution: Max. 0.001pF,4 significant figures
Tgδ range: unlimited,resolution: 0.001%,capacitance, inductance, resistance can be identified automatically.
Test current range: 10μA~5A
Inner HV: Setting voltage range: 0.5~12kV
Max. output current: 200mA
Increase/decrease voltage: Continuous slide regulating
Voltage precision: 2%
Voltage resolution: 1V
Test frequency: 45, 50, 55, 60, 65Hz single frequency
45/55Hz, 55/65Hz, 47.5/52.5Hz auto double frequency conversion
Frequency precision: ±0.01Hz
Outside HV: UST Positive connection max. test current 5A,Power frequency or frequency conversion 40-70Hz
GST Negative connection max. test current: 12kV/5A,power frequency or frequency conversion 40-70Hz
CVT self excitation LV output: Output voltage 3~50V,output current 3~30A
Measuring duty: about 36s, it depend on measuring methods
Input power supply: 180V~270VAC,50Hz/60Hz±1%,local supply or by generator.
RS232
Build-in thermal printer
Environmental Temperature: -10℃~50℃
Relative humidity: <90%
Oversize & weight: 460×360×350mm 28kg
