General Information:
DVDF Test System mainly designed for transformer induced withstand voltage test and partial discharge test.

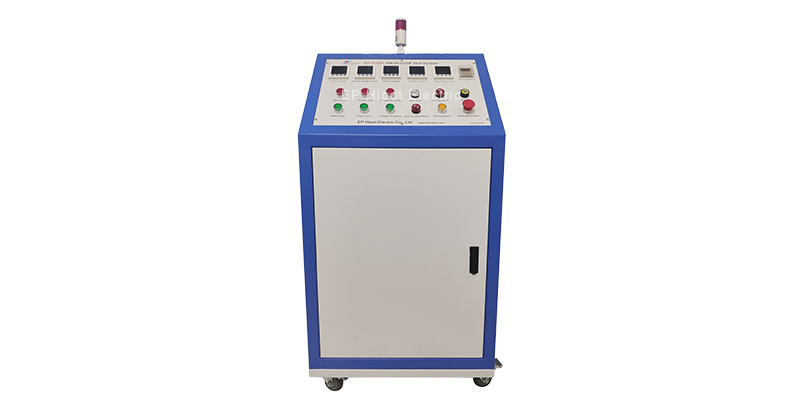

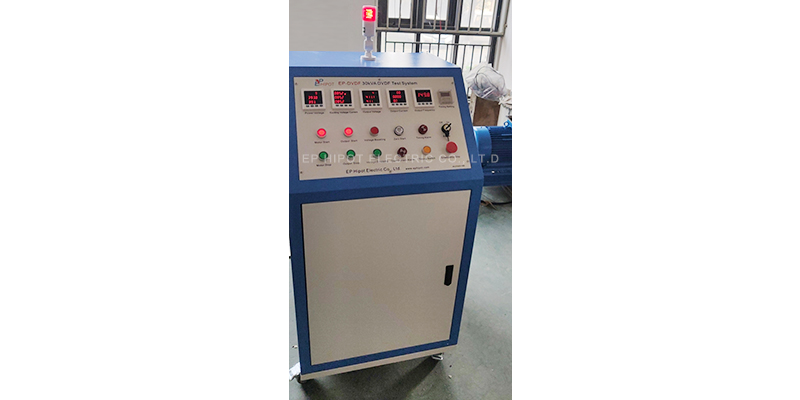

DVDF ControlTable:

ü 3 phase 4lines

ü Controlled by push button.

ü Designed for generator set controlling.

ü High anti interference ability

ü Full protection functions: over-current, over-voltage, zero-starting light alarm.

ü During testing process, press exit button to quit any tests. Press Emergency button ifany abnormal happened.

ü Digital voltage/current meter, precision 1.5 degree.

ü Power source: 3 phase

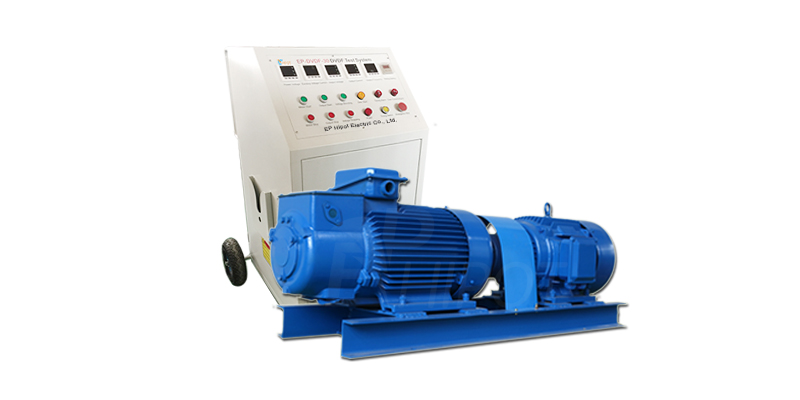

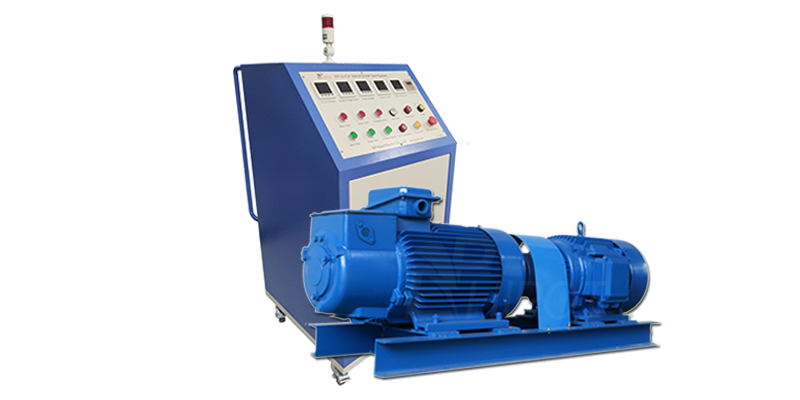

The system is consisted by below units:

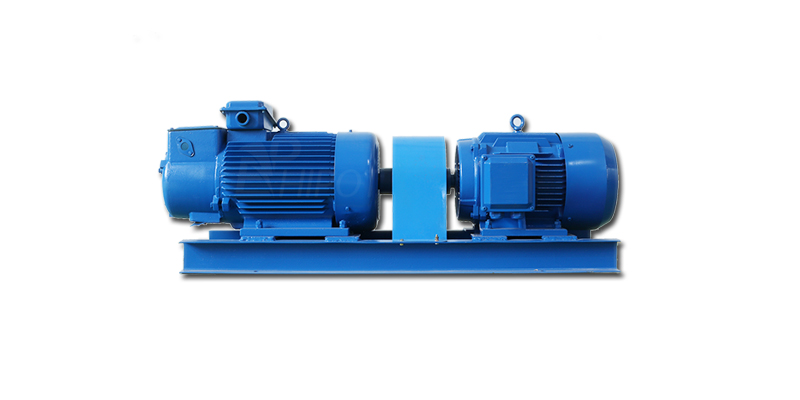

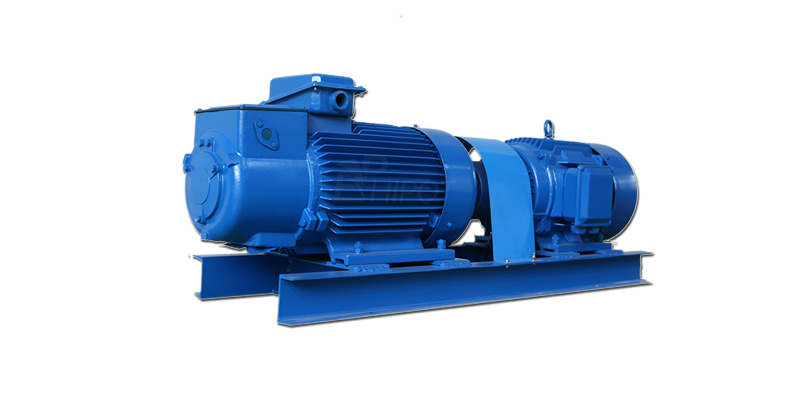

ü Generator Motor Set: EPYZR 1set

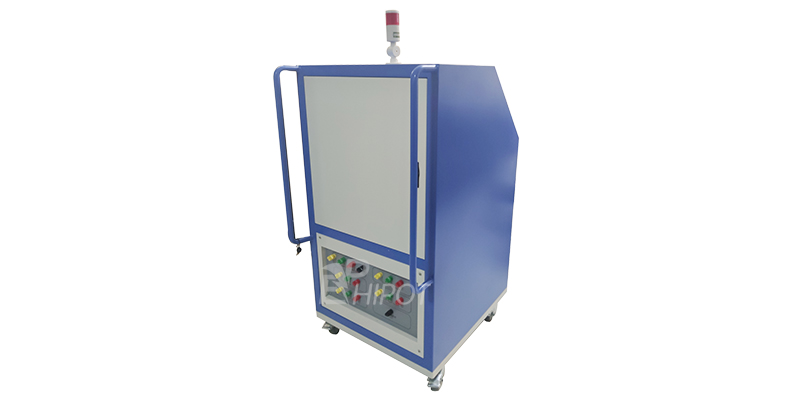

ü Generator Motor Set Controlling Table: EP-DVDF 1set


Motor Generator Set Main Specifications:

Power

kVA

Output Frequency

Hz

Operating CurrentA

Exciting VoltageV

Exciting CurrentA

Rated Output CurrentA

Rated Output VoltageV

30

150

9-14

140-185

15-18

15

800

30

150

9-14

140-185

11-25

9.5

1400

30

100

9-14

140-185

11-18

16

800

40

150

9-11

130-140

18-19

20.1

800

50

150

14-19

130-185

22-30

24.5

800

50

150

14-19

130-185

22-35

32

1400

50

100

14-19

140-185

22-30

16

800

60

150

19-24

100-150

11-18

32.5

800

60

150

19-24

170-220

28-38

22

1400

60

100

19-24

170-220

11-18

33

800

75

150

17-26

210-250

35-42

41

800

75

150

17-26

240-300

40-48

24

1400

75

100

17-26

210-250

34-40

42

800


Rated capacity: 40kVA

Generator input voltage: 380V

Generator input frequency: 50Hz

Generator input current: motor running current 15A, excitation current 19A

Rated speed: 1480r / min

Excitation voltage: 140V

Excitation current: 19A

Excitation frequency: 50Hz

Output voltage: 800V

Output current: 23A

Output frequency: 150Hz


This series can be customized according the customer'srequirements. More details on motor generator test set DVDF please contact EPHipot Electric, we have professional tech team to design correctly designedproducts and systems.
