Capacitance and Dissipation Factor Tester (12kV)
General Information:

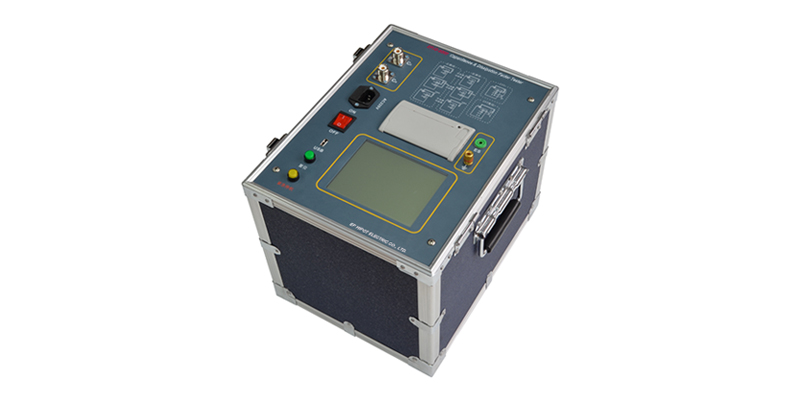

EPJS-6000 is a new generation, fully automatic on-site measure dielectric loss（tgδ）and the capacitance （Cx） of electric equipment. It’s suitable for testing on transformer, insulating bush, capacitor, CT/PT, MOA etc.
Also called: Automatic Capacitance and Tan Delta Tester
Features:
-Build-in dielectric loss bridge, frequency conversion power supply, testing transformer, SF6 high stability standard capacitor.
-The test high-voltage source is generated by the inverter inside the instrument and is used for the test object after boosting the voltage from the transformer.
-Frequency can be changed into 50Hz, 47.5Hz/52.5Hz, 45Hz/55Hz, 60Hz, 57.5Hz/62.5Hz, 55Hz/65Hz. Digital notch technology is adopted to avoid the interference of power frequency electric field to the test.
-Multiple protection of input voltage fluctuation, output short circuit, over-voltage, over-current, temperature, secure and reliable. Meanwhile, it has the function of grounding testing, that voltage boost is not permitted for non-grounding equipment.
-LCD touch screen display. English menu easy to operate.
-200 groups’ data storage. Save testing result according to time order, check history record and print the result.
-Multiple testing mode, with modes of inside high voltage, outside high voltage, inner standard, external standard, GST/UST, self-excitation. High voltage (more than 12kV) dielectric loss test can be made in the situation of external standard outside high voltage.
-Test full sealed CVT (Capacitive Voltage Transformer) C1 and C2 dielectric loss and capacitance at the same time. Also test CVT transformation ratio and voltage angle difference.
-The instrument can accurately measure the CVT dielectric loss value and capacitance value without removing the CVT high voltage lead.
-The dielectric loss and capacitance value of C0 in the upper end of CVT can be measured by using the reverse shielding method.
-High speed sampling signal. Inverter and sampling circuit inside are digitized controlled. Output voltage is adjusted continuously.
Technical Specifications:
| Working condition | -15℃~40℃ | RH＜80% | |
| Anti-interference principle | Frequency conversion | ||
| Power supply | AC 85V~160V | Generator can be used | |
| High voltage output | 0.5kV~12kV | Every 0.1kV | |
| Precision | 2% | ||
| Maximum current | 200mA | ||
| Capacity | 2000VA | ||
| Self-excitation power | AC 0V~50V/15A | 45HZ/55HZ 47.5HZ/52.5HZ 55HZ/65HZ 57.5HZ/62.5HZ Automatic double frequency | |
| Resolution | tgδ: 0.001% | Cx: 0.001pF | |
| Accuracy | | ||
| | |||
| Measurement range | tgδ | Without limit | |
| Cx | 15pF ＜ Cx | ||
| 12kV | Cx ＜ 30 nF | ||
| 5kV | Cx ＜ | ||
| 1kV | Cx ＜300 nF | ||
| CVT test | Cx ＜ 300 nF | ||
| CVT ratio range | 10~10000 | ||
| CVT ratio accuracy | 0.1% | ||
| CVT ratio resolution | 0.01 | ||
| Storage | 200 group supports U disk data storage | ||
| Dimension | Main unit: 350(L)×270(W)×270(H) | ||
| Accessory box: 350(L)×270(W)×160(H) | |||
| Weight | Main unit: 22.75kg | ||
| Accessory box: 5.25kg | |||
