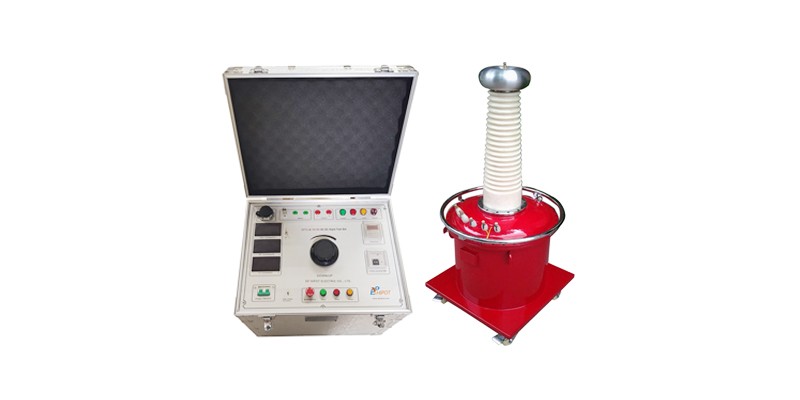

Power Frequency Withstand Voltage Tester
General Information:
EPTC-M Series AC DC Hipot Tester is suitable for hipot dielectric withstand test on various power electric products, units, insulating material and etc.
Features:
-Manual controlling.
-LED Display. Real time monitoring High voltage (HV) voltage, Low voltage (LV) current.
-High anti interference ability.
-Full protection functions: over-current, zero-starting sound light alarm, power switch protection.
-New type over-current relay, more accurate and reliable, to ensure the safety of the people and device.
-The control tester: Box type.
-AC/DC is selectable.
-Under castor, easy to move.
Technical Specifications:

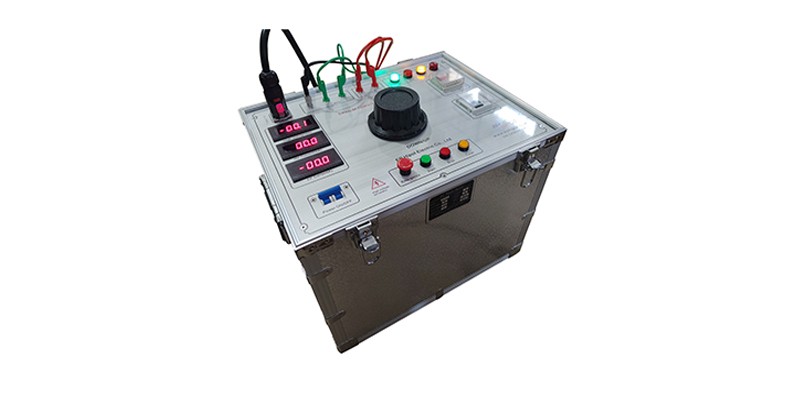

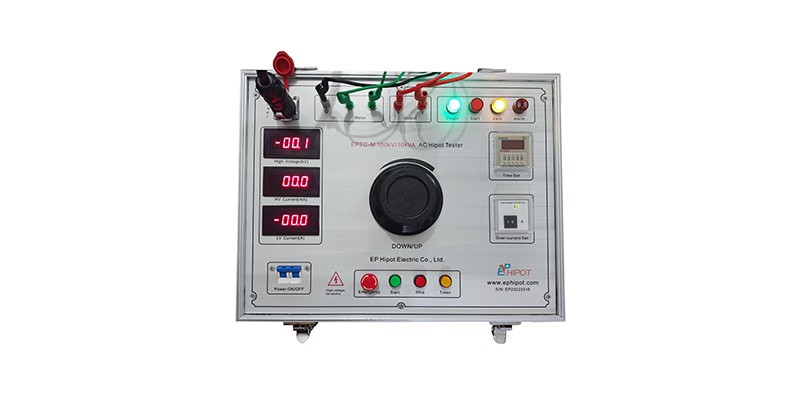

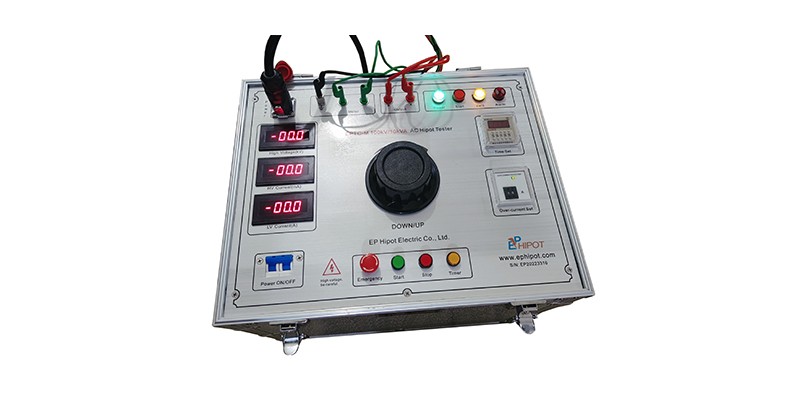

Control Unit Specifications:
| Power: | |
| Capacity: | 10kVA |
| Rated output: | AC 250V |
| Rated output current: | 40A |
| HV voltmeter range: | AC 0-100kV DC 0-140kV |
| Accuracy: 1.0% of the reading±1digit (F.S) | |
| LV ammeter range: | 0-50A |
| Accuracy: 1.0% of the reading±1 digit (F.S) | |
| Timing range: | 0-9999S |
| Metering: | Digital display |
| Weight: | About 45kg |
| Dimension: | 350mm(L)*300mm(W)*570mm |

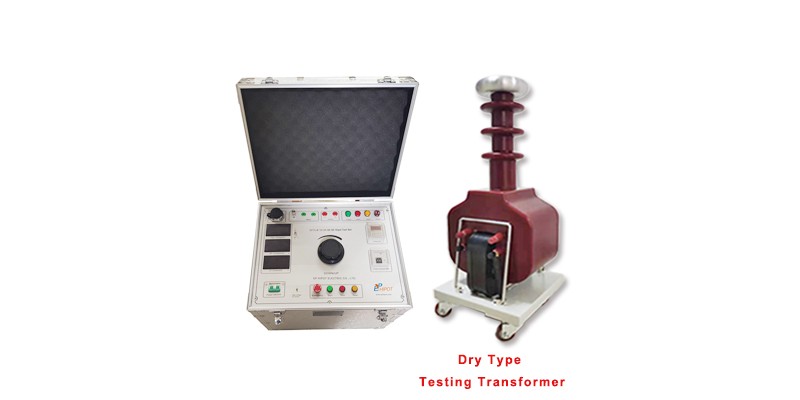

HV unit (DryType Testing transformer) specifications:
| LV side voltage: | 0-200V |
| LV side current: | AC 0-50A |
| HV side voltage: | AC 0-100kV/DC0-140kV |
| HV side current: | AC 100mA |
| Capacity: | 10kVA |
| Rating: | 100% Rated 1minute, 50% continuous |
| Measuring voltage: | AC 0-100V |
| No-load current: | less than 3.5% |
| Impedance voltage: | less than 8% |
| Weight: | About 96kg |
| Dimension: | 390mm(L)*390mm(W)*1100mm(H) |
More details on DC AC Power Frequency Withstand Voltage Tester please contact EP Hipot Electric: tech@ephipot.com.
