General Information:

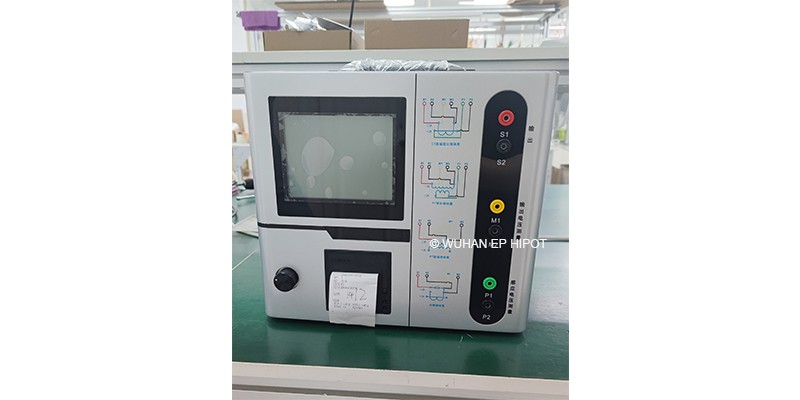

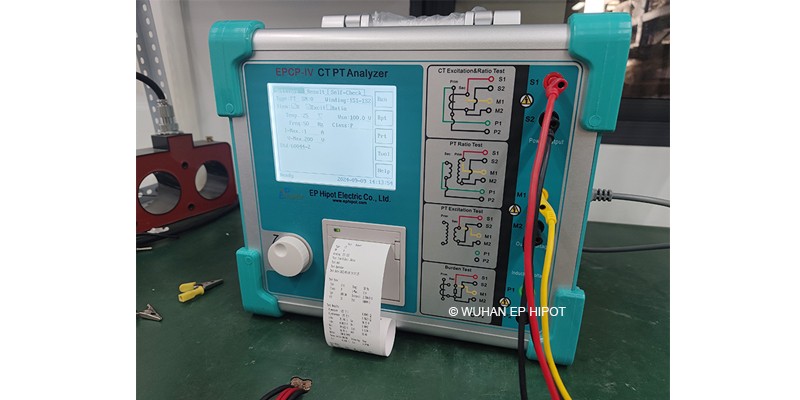

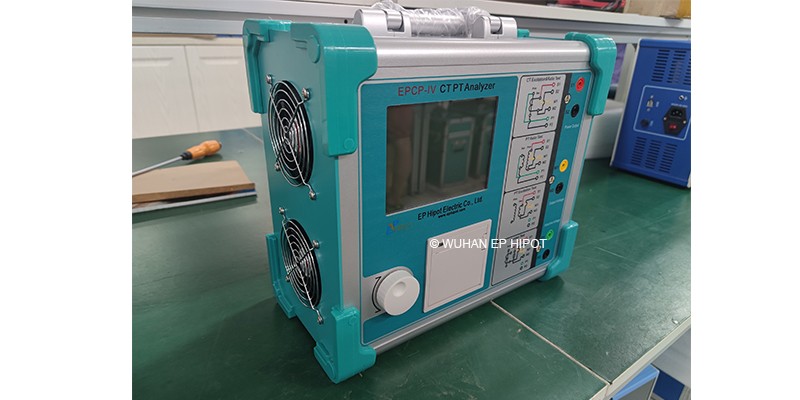

EPCP-IV is portable analyzer designed for analyzing current transformers and voltage transformers of protection or measurement use, which is suitable for laboratory and on-site test.

Feature:
-Full-featured to meet the excitation characteristics (ie, volt-ampere characteristics), ratio, polarity, secondary winding resistance, secondary load, ratio difference, and angle difference of various types of CT (eg, protection, metrology, TP) Such test requirements, but also for various types of PT electromagnetic unit excitation characteristics, transformation ratio, polarity, secondary winding resistance test.

-Automatically give corner voltage/current, 10% (5%) error curve, accurate limit factor (ALF), instrument security factor (FS), secondary time constant (Ts), remanence factor (Kr), saturation inductance, etc.

-The test meets various types of transformer standards such as GB1208 (IEC60044-1), GB16847 (IEC60044-6), and GB1207, and tests are automatically selected according to the type and level of the transformer.

-Based on the advanced low-frequency test principle, it can deal with CT tests with inflection points up to 40KV.

-The device uses the international popular square wave method to make the excitation curve more perfect.

- The instrument can store 3000 sets of test data, which will not be lost when power off.

- The test is simple and convenient, one-button CT direct resistance, excitation, ratio and polarity tests are performed, and in addition to the load test, all other CT tests use the same wiring method.

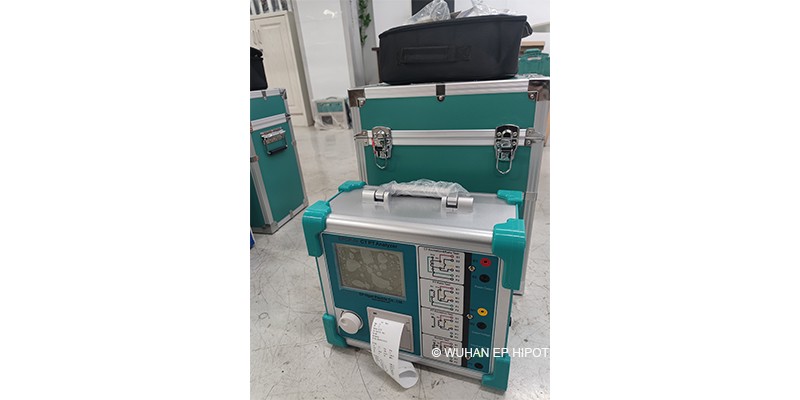

- It is easy to carry and the device contains about 8Kg of total weight of wiring.

Technical Specifications:

More details on EPCP-IV CT/PT Analyzer (Variable Frequency Method), please contact Wuhan EP Hipot Electric Co., Ltd. tech@ephipot.com
