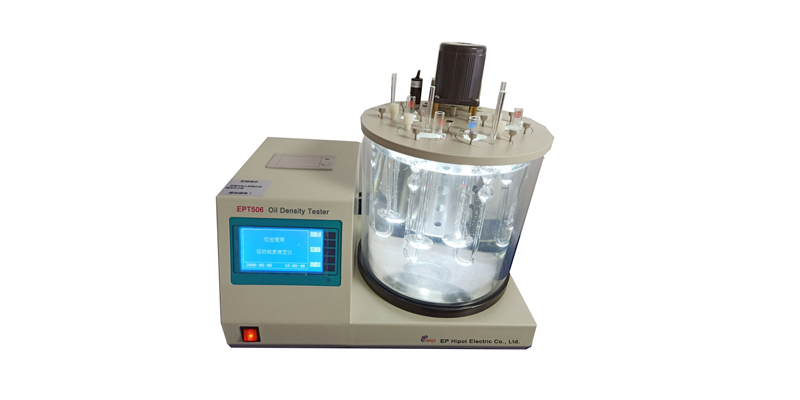

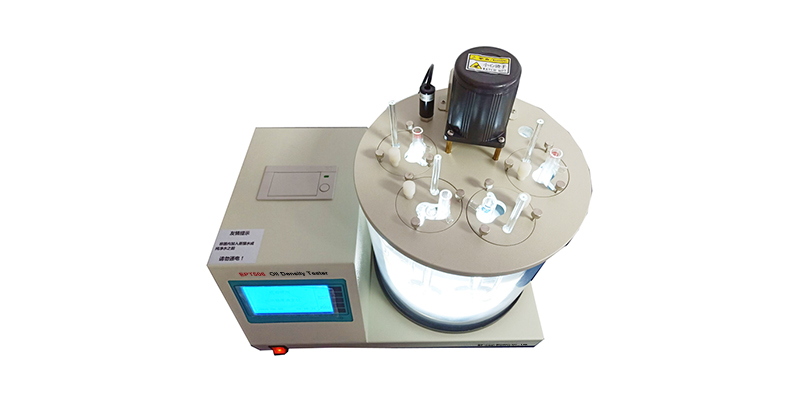

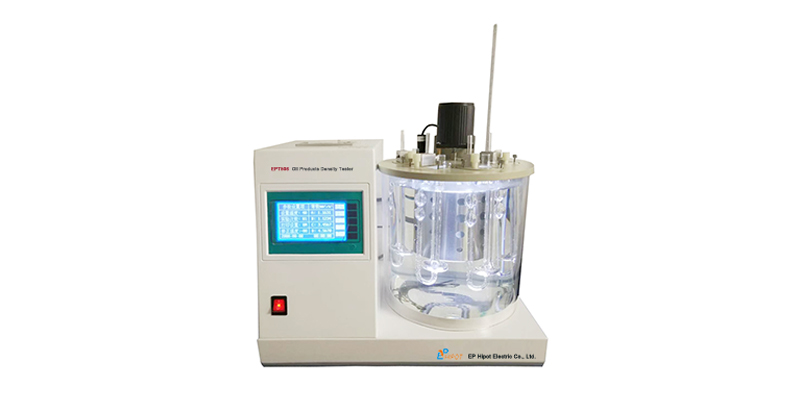

Oil Density Meter (ASTM D1298)
General Information:
EPT506 Oil Density Meter is designed and made as per standards GB/T 1884-2000 Crude petroleum and liquid petroleum products – Laboratory determination of density - Hydrometer method and ASTM D1298 Standard Test Method for Density, Relative Density(Specific Gravity),or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method. It is used to determine the density of crude petroleum and liquid petroleum. Widely used in oil, power, military, chemical, railway, scientific research and other industries.
Features:
Using advanced single-chip intelligent temperature control, LCD screen displays temperature, time, parameters in time.
After entering the relevant data, the test results are automatically calculated, and the measurement results are automatically printed and stored.
10L constant temperature bathtub, outer plexiglass insulation cover, even temperature distribution in the bath, good temperature control effect.
The keyboard sets parameters such as control temperature value, fine-tuning temperature value, test times.
Specifications:
| Working power supply | AC220V ± 10% 50Hz |
| Display mode | LCD display |
| Temperature control range | Room temperature ~ 100 ºC, continuously adjustable |
| Sample quantity | 3 channels |
| Timing range | 0.1s ～ 999.9s |
| Timing accuracy | ± 0.1S |
| Bath volume | Ф300㎜ × 340mm (diameter × height) |
| Test tube capacity | 500ml |
| Temperature measuring element | High precision PT100 platinum resistance |
| Ambient temperature | 5 |
| Relative humidity | ≤85% |
